Functions/Subroutines | |
| subroutine | lit_config (temps_ref, tube_ref, Lshell_ref, simu) |
| Read input configuration file. Done by master proc only. More... | |
| subroutine | traite_position (keyword, line) |
| Decode a position line in configuration file. In config.run: keyword line where: . More... | |
| subroutine | genere_report () |
| type(calendar) function | init_date (line) |
| Fonction de lecture de la date de simulation et conversion en bon format. More... | |
| real function, dimension(3) | pointage (mode, pos_ref, az, rnge) |
| subroutine | decode_position (var, tab, mode) |
| Decode a position word in configuration file. More... | |
| subroutine | create_simu_name (mode_geom, mode_output, i_tube, i_step, temps, tube, simu_name) |
| Write simu output name. More... | |
| integer function | find_best_record (planet, Lmax, Lshell_list, latgeo_list, bsurf_list, fexp_list, zapex_list, tube) |
| Find the best index that fit a tube description. Earth and Jupiter Find the index irec of Lshell_list so that Lshell_list(irec) nearest from tube%posref%L. Venus and Mars Find the index irec of latgeo_list so that latgeo_list(irec) nearest from tube%posref%latgeo. Sun Find the index irec of (bsurf_list,fexp_list,zapex_list) nearest from (tube%bsurf,tube%f_exp,tube%z_apex) Suppose that arrays are not sorted but have same length. More... | |
| subroutine | decode_filename (folder, file_in, file_list) |
| Decode filename keyword in lit_config. More... | |
| subroutine create_simu_name | ( | character (len=3), intent(in) | mode_geom, |
| character (len=3), intent(in) | mode_output, | ||
| integer, intent(in) | i_tube, | ||
| integer, intent(in) | i_step, | ||
| type(calendar), intent(in) | temps, | ||
| type(tube_description), intent(in) | tube, | ||
| character(len=*), intent(out) | simu_name | ||
| ) |
Write simu output name.
Output name is like:
ENN_0001_0001_YYYYdoy_time_x_y
or
ENN_0001_0001_YYYYdoy_time_fexp_bsurf_zapex
where:
x,y = f(mode_geom)
MODE x y
GEO latgeo longeo
MAG latmag lonmag
INV L tmag
IMX L tmag
TMG latmag tmag
INP bsurf fexp zapex
| [in] | mode_geom | character(len=3) GEO or MAG or TMG or INV or IMX |
| [in] | mode_output | character(len=3) E/N C/N P/N |
| [in] | i_tube | |
| [in] | i_step | |
| [in] | temps | type(calendar) |
| [in] | tube | type(tube_description) |
| subroutine decode_filename | ( | character(len=*), intent(in) | folder, |
| character(len=*), intent(in) | file_in, | ||
| character(len=len_name), dimension(:), allocatable | file_list | ||
| ) |
Decode filename keyword in lit_config.
Check if all filenames in list exist in folder before adding it to the returned list.

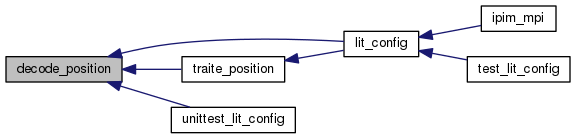

| subroutine decode_position | ( | character(len=*) | var, |
| real, dimension(:), allocatable | tab, | ||
| character(len=3) | mode | ||
| ) |
Decode a position word in configuration file.
Position word can have several forms:
Format is the following:
| [out] | tab | array with position |
| [out] | mode | LIN or REF or AZM or RNG |

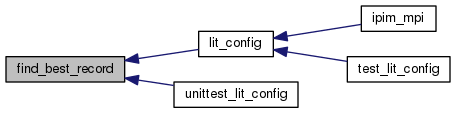

| integer function find_best_record | ( | character(len=*), intent(in) | planet, |
| real*8, intent(in) | Lmax, | ||
| real, dimension(:), intent(in) | Lshell_list, | ||
| real, dimension(:), intent(in) | latgeo_list, | ||
| real, dimension(:), intent(in) | bsurf_list, | ||
| real, dimension(:), intent(in) | fexp_list, | ||
| real, dimension(:), intent(in) | zapex_list, | ||
| type(tube_description), intent(in) | tube | ||
| ) |
Find the best index that fit a tube description.
Earth and Jupiter
Find the index irec of Lshell_list so that Lshell_list(irec) nearest from tube%posref%L.
Venus and Mars
Find the index irec of latgeo_list so that latgeo_list(irec) nearest from tube%posref%latgeo.
Sun
Find the index irec of (bsurf_list,fexp_list,zapex_list) nearest from (tube%bsurf,tube%f_exp,tube%z_apex)
Suppose that arrays are not sorted but have same length.

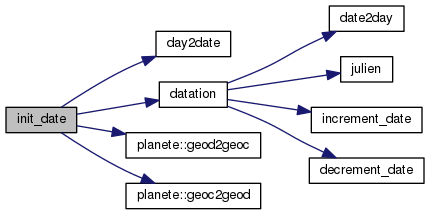

| type(calendar) function lit_config::init_date | ( | character(len=*) | line | ) |
Fonction de lecture de la date de simulation et conversion en bon format.

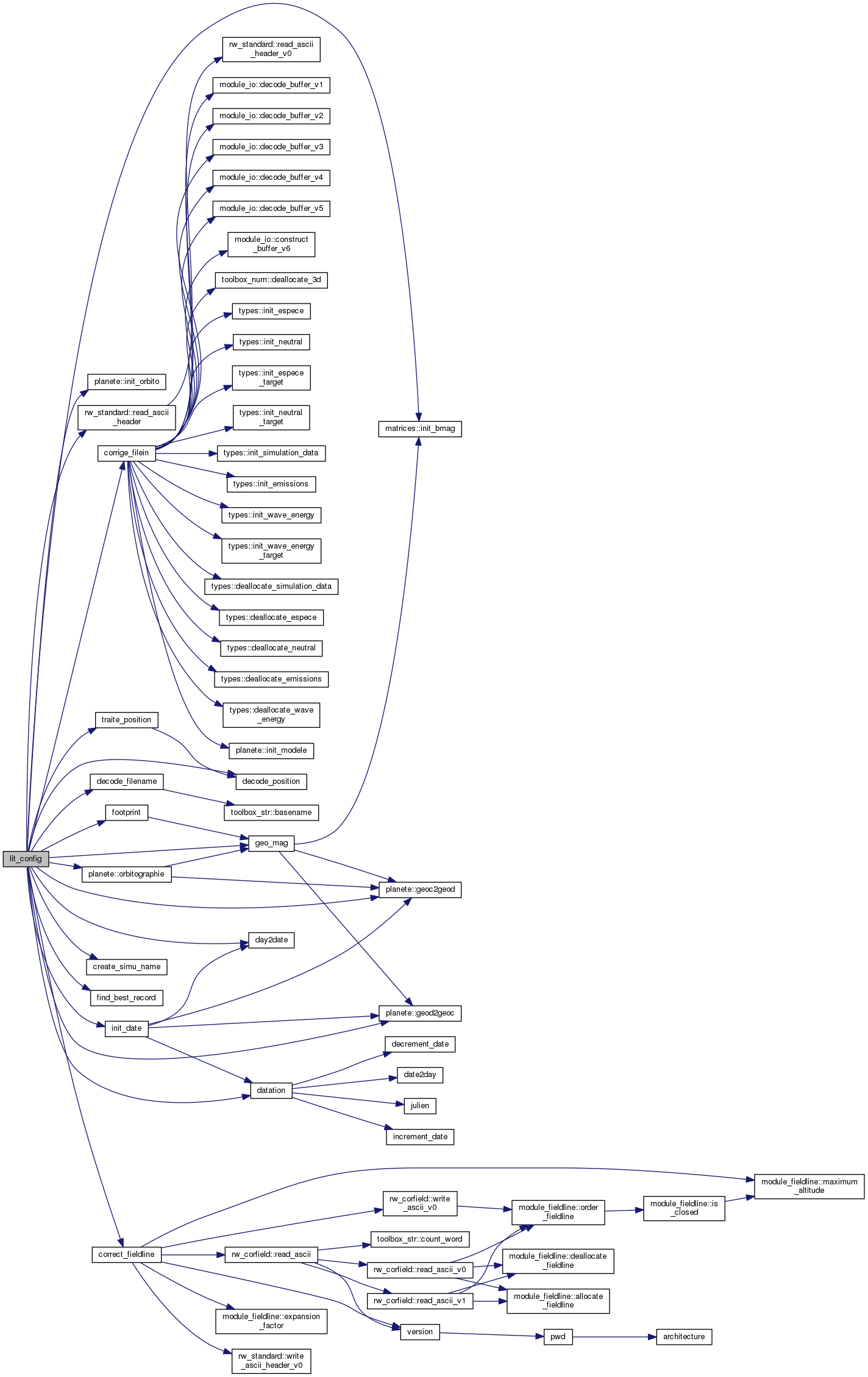

| subroutine lit_config | ( | type(time_global), dimension(:), allocatable | temps_ref, |
| type(tube_description), dimension(:), allocatable | tube_ref, | ||
| real, dimension(:), allocatable | Lshell_ref, | ||
| type(mode_simu), dimension(:), allocatable | simu | ||
| ) |
Read input configuration file. Done by master proc only.
| [out] | tube_ref | All tubes present for the simulation. Tubes present in config file (tube_wanted) + convected tubes (if any). |
| [out] | simu | All mode_simu needed for the simulation. Simu(0) is the one read from file.in. Simu(i_tube) contains info for i_tube-th tube. |
| [out] | temps_ref | All time_global needed for the simulation. Temps_ref(0) is the one read from file.in. Temps_ref(i_tube) contains info for i_tube-th tube. |
simu(i_tube)%name: defined by create_simu_name.
simu(i_tube)%ishell: defined by find_best_record.
INI file.ini OLD/NEW
RES date_in
SIM duration dt dt_output solve
IMM dt_imm
KIN dt_kin iflg_sol iflg_prc
ELC ipot icur iprc
CNV dt_conv duration_before duration_after
CCT file_cct
DAT data_dir
POT filename (must be in dir.input)
CUR filename (must be in dir.input)
GEF filename
XXX See traite_position
About GEF keyword.
If geometry file present (keyword GEF), call correct_fieldline on this file to write it on the good format.
About CCT keyword.
Not available for the moment with geometry file.
About OLD keyword.
Not available for the moment with geometry file.
| subroutine lit_config::traite_position | ( | character(len=3), intent(in) | keyword, |
| character(len=len_name) | line | ||
| ) |
Decode a position line in configuration file. In config.run: keyword line
where:
.
Different keywords:
Here the format:
