Interface for all planets. More...

Data Types
interface	atmosphere

Public Member Functions
subroutine	atm_neutre (jour, pos, proxy, neutre, i_tube)
	Interface of atm_planet routine for neutral type. More...

subroutine	atm_ntr (jour, pos, proxy, ntre)
	Interface of atm_planet routine for ntr type. More...

subroutine	chapman (jour, i_tube, pos_tube, neutre, pos, proxy, coldens)
	Compute column neutral density along solar direction for all point in pos structure. For unresolved neutrals compute density with atmosphere routine. For resolved neutrals interpolate density from pos_tube and neutre structure. More...

subroutine	grid_quadrature (jour, pos, nq, posi, wi)
	Interpolation routine used by Chapman subroutine. More...

subroutine	init_modele
	Definition de quelques parametres de simulation N_o,...,indui,...,parametres de normalisation,me_mi,sigo,omegao. More...

subroutine	init_modele2
	Definition de quelques parametres de simulation N_o,...,indui,...,parametres de normalisation,me_mi,sigo,omegao. More...

subroutine	init_modele_atmo ()
	Allocate and initialise some variables from modele_atmo spc_atmo taken from planete_XXX module. More...

subroutine	geod2geoc (pos)
	Conversion from geodetic to geocentric coordinates. More...

subroutine	geoc2geod (pos)
	Conversion from geocentric to geodetic coordinates. More...

subroutine	init_orbito ()
	Knowing the planet and frame wanted (planet name, frame, spice file) compute some orbital parameters (R_sun, Rp, G_M, G_o, geod, ifrm_*) More...

subroutine	close_orbito ()
	Close all spice files. More...

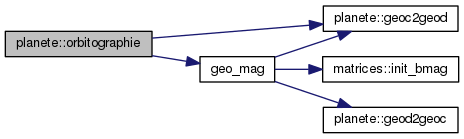

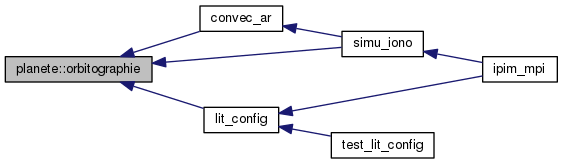

subroutine	orbitographie (temps)
	At temps J2000, compute variable orbital characteristics : r_helio, mat_GSE, lonref_stl, lonref_mag. More...

subroutine	profil_temp_ion_sun (x, y)
	Temperature for Sun case. More...

subroutine	change_grid_ion (coef, dens_min, ion_in, itube_in, ion_out, itube_out)
	Compute ion parameters on new grid. More...

subroutine	change_grid_ntr (coef, dens_min, neutre_in, itube_in, neutre_out, itube_out)
	Compute neutral parameters on new grid. More...

subroutine	change_grid_ew (coef, ew_in, itube_in, ew_out, itube_out)
	Compute wave energy density on the new grid. More...

subroutine	keep_ion_old (ion_new, ind_isp, ind_alt, i_tube, ion_old)
	Copy ion_new into ion_old. More...

subroutine	keep_ntr_old (ntr_new, ind_isp, ind_alt, i_tube, ntr_old)
	Copy ntr_new into ntr_old. More...

subroutine	keep_ew_old (ew_new, ind_alt, i_tube, ew_old)
	Copy ew_new into ew_old. More...

Detailed Description

Interface for all planets.

Member Function/Subroutine Documentation

subroutine planete::atm_neutre	(	type(calendar)	jour,
		type(coordonnees), dimension(:)	pos,
		type(activite)	proxy,
		type(neutral), dimension(:)	neutre,
		integer	i_tube
	)

Interface of atm_planet routine for neutral type.

Author

subroutine planete::atm_ntr	(	type(calendar)	jour,
		type(coordonnees), dimension(:)	pos,
		type(activite)	proxy,
		type(ntr), dimension(:)	ntre
	)

Interface of atm_planet routine for ntr type.

Author

subroutine planete::change_grid_ew	(	type(coef_interp), intent(in)	coef,
		type(wave_energy), intent(in)	ew_in,
		integer, intent(in)	itube_in,
		type(wave_energy), intent(out)	ew_out,
		integer, intent(in)	itube_out
	)

Compute wave energy density on the new grid.

Author

Here is the caller graph for this function:

subroutine planete::change_grid_ion	(	type(coef_interp), intent(in)	coef,
		real*8, dimension(:), intent(in)	dens_min,
		type(espece), intent(in)	ion_in,
		integer, intent(in)	itube_in,
		type(espece), intent(out)	ion_out,
		integer, intent(in)	itube_out
	)

Compute ion parameters on new grid.

Author

Here is the caller graph for this function:

subroutine planete::change_grid_ntr	(	type(coef_interp), intent(in)	coef,
		real*8, dimension(:), intent(in)	dens_min,
		type(neutral), intent(in)	neutre_in,
		integer, intent(in)	itube_in,
		type(neutral), intent(out)	neutre_out,
		integer, intent(in)	itube_out
	)

Compute neutral parameters on new grid.

Author

Here is the caller graph for this function:

subroutine planete::chapman	(	type(calendar), intent(in)	jour,
		integer, intent(in)	i_tube,
		type(coordonnees), dimension(:,:), intent(in)	pos_tube,
		type(neutral), dimension(:), intent(in)	neutre,
		type(coordonnees), dimension(:), intent(in)	pos,
		type(activite), intent(in)	proxy,
		real*8, dimension(:,:)	coldens
	)

Compute column neutral density along solar direction for all point in pos structure. For unresolved neutrals compute density with atmosphere routine. For resolved neutrals interpolate density from pos_tube and neutre structure.

Author

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine planete::close_orbito ( )

Close all spice files.

Author

Here is the caller graph for this function:

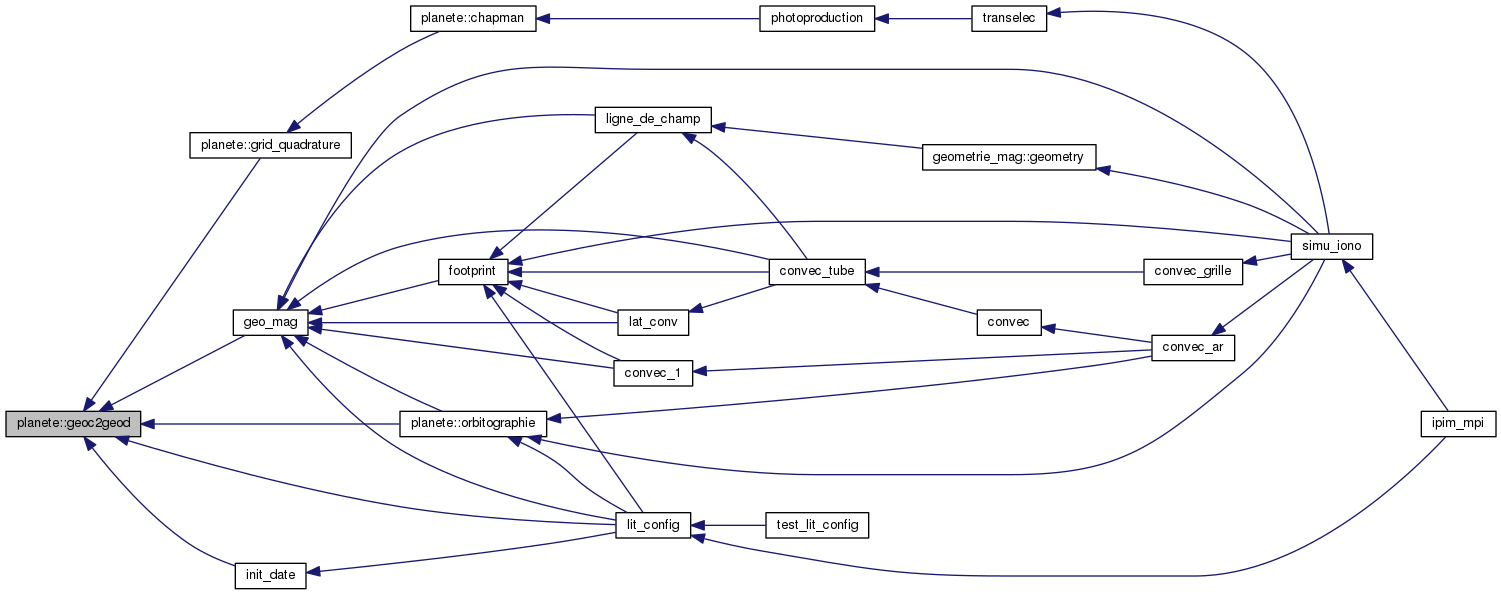

subroutine planete::geoc2geod ( type(coordonnees) pos )

Conversion from geocentric to geodetic coordinates.

Author

Here is the caller graph for this function:

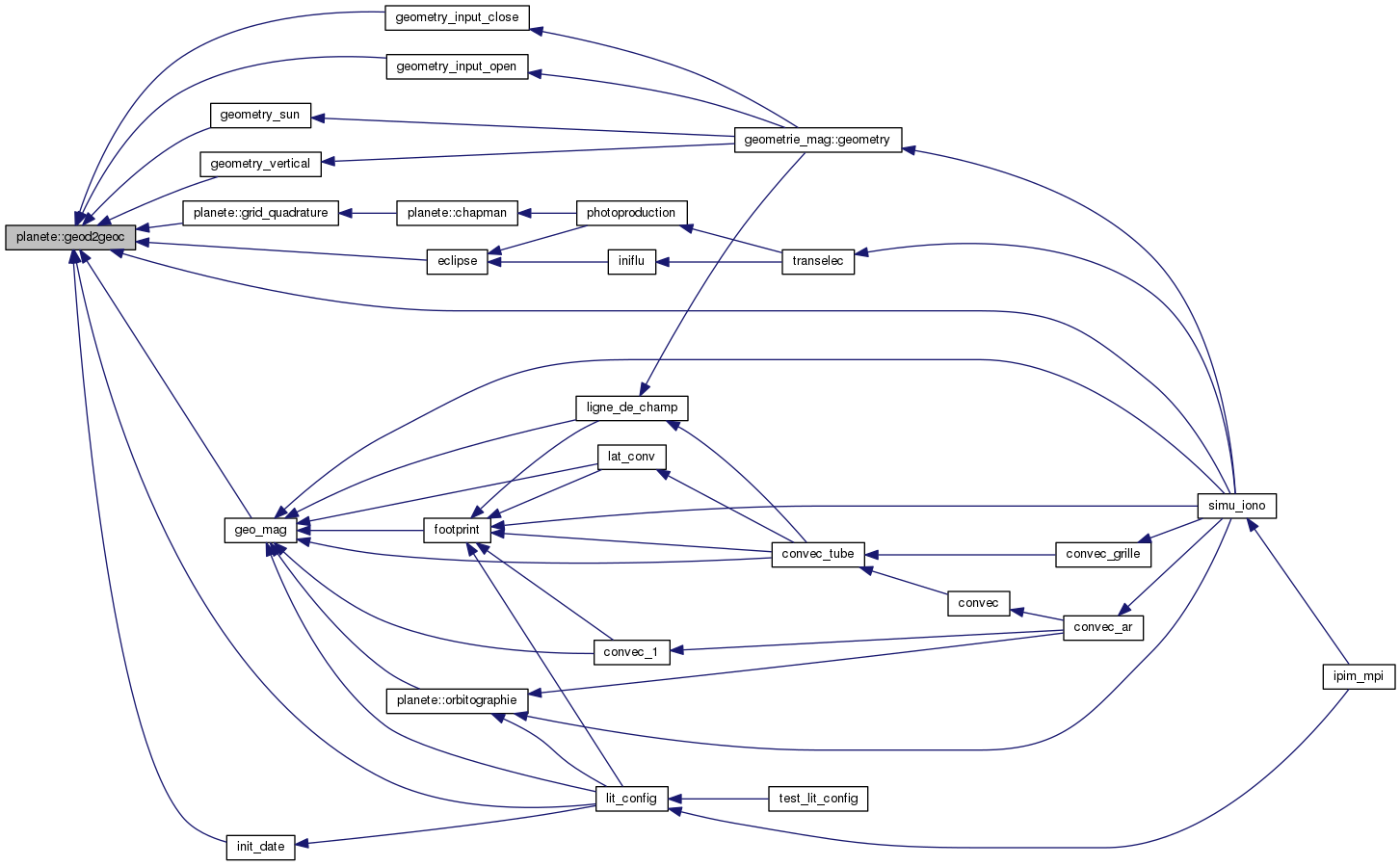

subroutine planete::geod2geoc ( type(coordonnees) pos )

Conversion from geodetic to geocentric coordinates.

Author

Here is the caller graph for this function:

subroutine planete::grid_quadrature	(	type(calendar)	jour,
		type(coordonnees)	pos,
		integer	nq,
		type(coordonnees), dimension(:)	posi,
		real*8, dimension(:)	wi
	)

Interpolation routine used by Chapman subroutine.

Author

Here is the call graph for this function:

Here is the caller graph for this function:

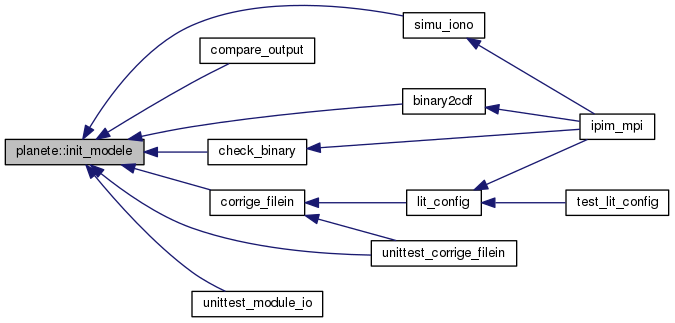

subroutine planete::init_modele ( )

Definition de quelques parametres de simulation N_o,...,indui,...,parametres de normalisation,me_mi,sigo,omegao.

Author

Here is the caller graph for this function:

subroutine planete::init_modele2 ( )

Definition de quelques parametres de simulation N_o,...,indui,...,parametres de normalisation,me_mi,sigo,omegao.

Author

Here is the caller graph for this function:

subroutine planete::init_modele_atmo ( )

Allocate and initialise some variables from modele_atmo spc_atmo taken from planete_XXX module.

Author

Here is the caller graph for this function:

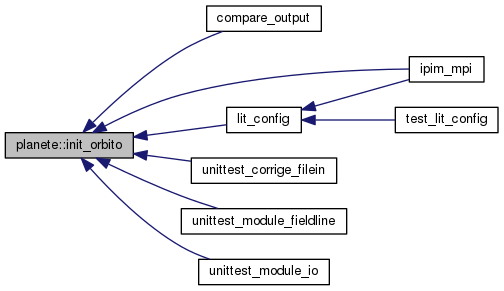

subroutine planete::init_orbito ( )

Knowing the planet and frame wanted (planet name, frame, spice file) compute some orbital parameters (R_sun, Rp, G_M, G_o, geod, ifrm_*)

Author

Here is the caller graph for this function:

subroutine planete::keep_ew_old	(	type(wave_energy), intent(in)	ew_new,
		integer, dimension(:), intent(in)	ind_alt,
		integer	i_tube,
		type(wave_energy), intent(out)	ew_old
	)

Copy ew_new into ew_old.

Author

Here is the caller graph for this function:

subroutine planete::keep_ion_old	(	type(espece), dimension(:), intent(in)	ion_new,
		integer, dimension(:), intent(in)	ind_isp,
		integer, dimension(:), intent(in)	ind_alt,
		integer	i_tube,
		type(espece), dimension(:), intent(out)	ion_old
	)

Copy ion_new into ion_old.

Author

Here is the caller graph for this function:

subroutine planete::keep_ntr_old	(	type(neutral), dimension(:), intent(in)	ntr_new,
		integer, dimension(:), intent(in)	ind_isp,
		integer, dimension(:), intent(in)	ind_alt,
		integer	i_tube,
		type(neutral), dimension(:), intent(out)	ntr_old
	)
