Define fieldline structure, contains routines to process it, interface to read it. More...

Data Types
type	fieldline_type
	nsize: length of fieldline arrays curv : curvlinear abscissa (m) alt : altitude (m) r : radial distance (normalised by Rastre) lon : longitude (degree) lat : latitude (degree) bnorm: magnetic field norm (T) br : B radial (T) bp : B zonal (T) bt ! B meridional (T) More...

Public Member Functions
subroutine	maximum_altitude (fieldline, zmax, imax)
	Find the maximum altitude and its index.

real *8 function	expansion_factor (fieldline, ialt_in)
	Compute the expansion factor at some altitude. More...

subroutine	order_fieldline (fieldline)
	Rearrange orientation of a fieldline. More...

logical function	is_closed (fieldline)
	Check if a fieldline is closed or open. More...

subroutine	split_fieldline (x, x_s, x_n)
	Split a closed magnetic fieldline into its 2 hemispheres. More...

subroutine	print_fieldline (x, fid)
	Print a fieldline_type in an already open file.

subroutine	allocate_fieldline (x)
	Allocate fieldline_type.

subroutine	deallocate_fieldline (x)
	Deallocate fieldline_type.

Detailed Description

Define fieldline structure, contains routines to process it, interface to read it.

Member Function/Subroutine Documentation

real*8 function module_fieldline::expansion_factor	(	type(fieldline_type), intent(in)	fieldline,
		integer, intent(in)	ialt_in
	)

Compute the expansion factor at some altitude.

Parameters

[in]	fieldline	type(fieldline)
[in]	ialt_in	index altitude where the factor is computed

expansion_factor = (R(1)/R(ialt_in))^2*(Bnorm(1)/Bnorm(ialt_in))

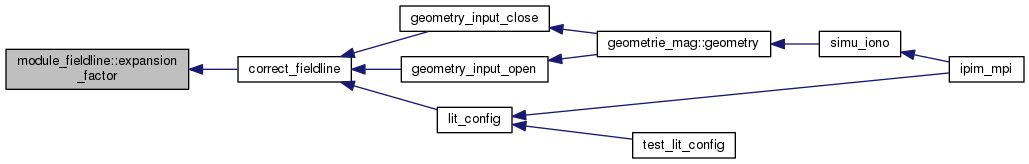

Here is the caller graph for this function:

logical function module_fieldline::is_closed ( type(fieldline_type) fieldline )

Check if a fieldline is closed or open.

Close if zmax .gt. fieldlinealt(1) .and. zmax .gt. fieldlinealt(fieldlinensize)

Here is the call graph for this function:

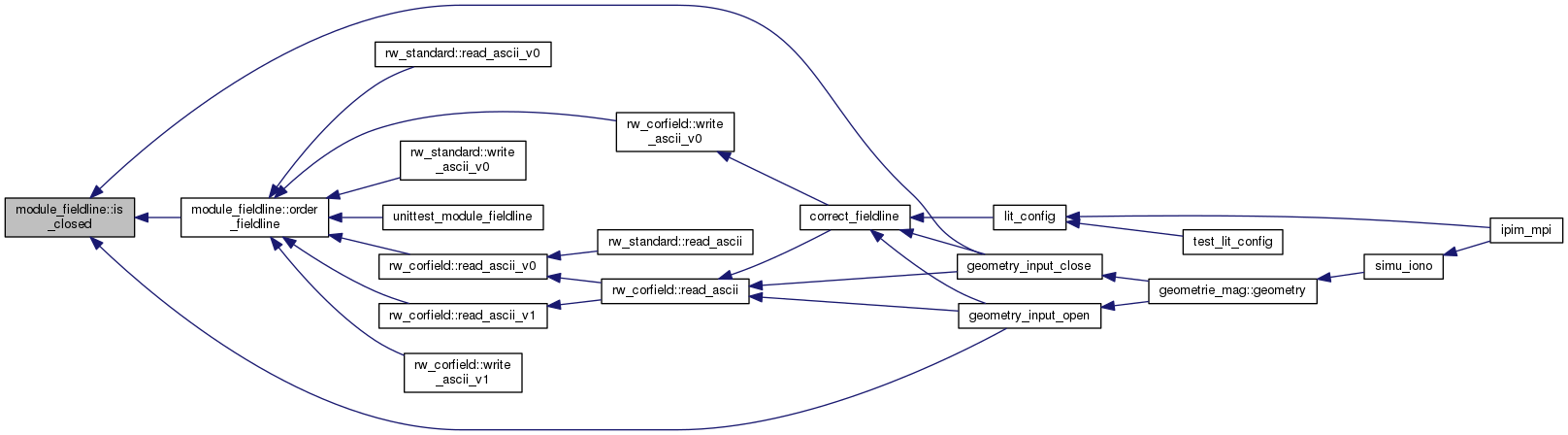

Here is the caller graph for this function:

subroutine module_fieldline::order_fieldline ( type(fieldline_type) fieldline )

Rearrange orientation of a fieldline.

For open fieldline:
bottom at ialt == 1
For close fieldline:
first index is in Southern hemisphere or at least southern than last index

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine module_fieldline::split_fieldline	(	type(fieldline_type), intent(in)	x,
		type(fieldline_type)	x_s,
		type(fieldline_type)	x_n
	)

Split a closed magnetic fieldline into its 2 hemispheres.

Apex at Rmax or Bmin (index = nmax).

First hemisphere (Southern or Southest)

Second hemisphere (Northern or Northest)

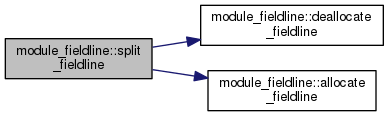

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this module was generated from the following file:
